A Turntable Project (09/2018) |
|
After I have my Carrson project to a young and very dedicated enthusiast, I found myself with a large sturdy trolley designed for an EMT 927...suddenly empty. So I decided to design a new turntable on the general lines of the classic 'broadcast' decks of the great era of the vinyl. It has to be big, heavy, sturdy, with a classic idler-wheel drive. The first part of the job will be to find some good parts from donor decks, over the years I have bought so many of these that I have plenty of them and some, I must say, were bought in such a nasty condition that restoration has never been contemplated. Of course, I did never think of cannibalizing an EMT, Garrard 301/401 or TD124 to assemble this project: I turned my attention first to the remains of some old USA workhorses.... |
|
Rek-O-Kut Parts |
 |
|

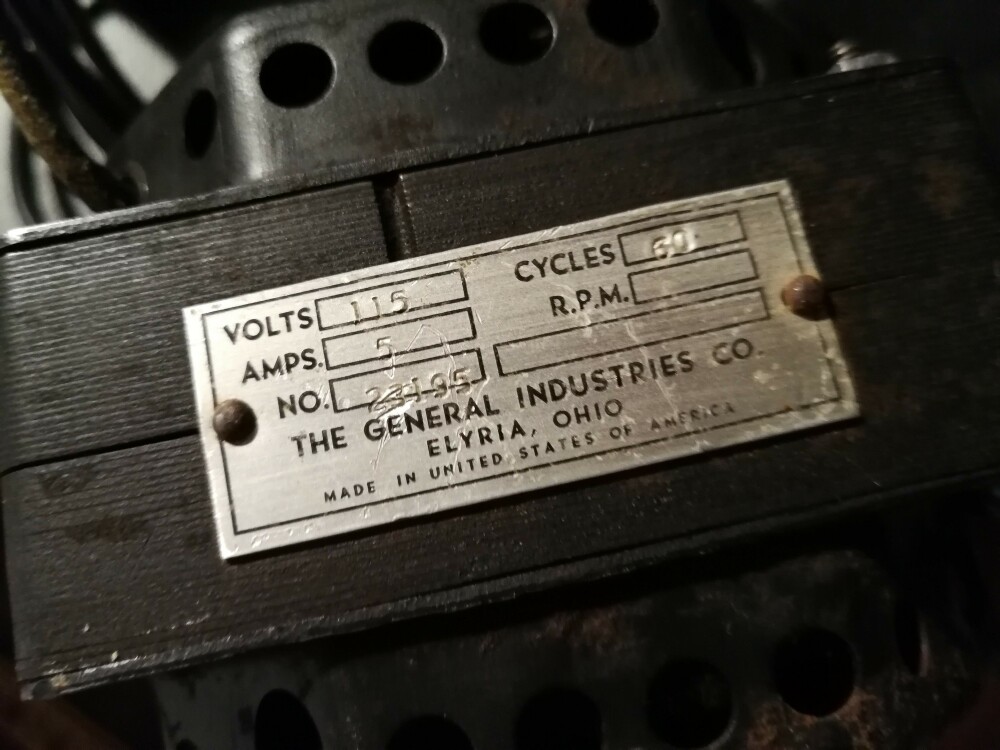

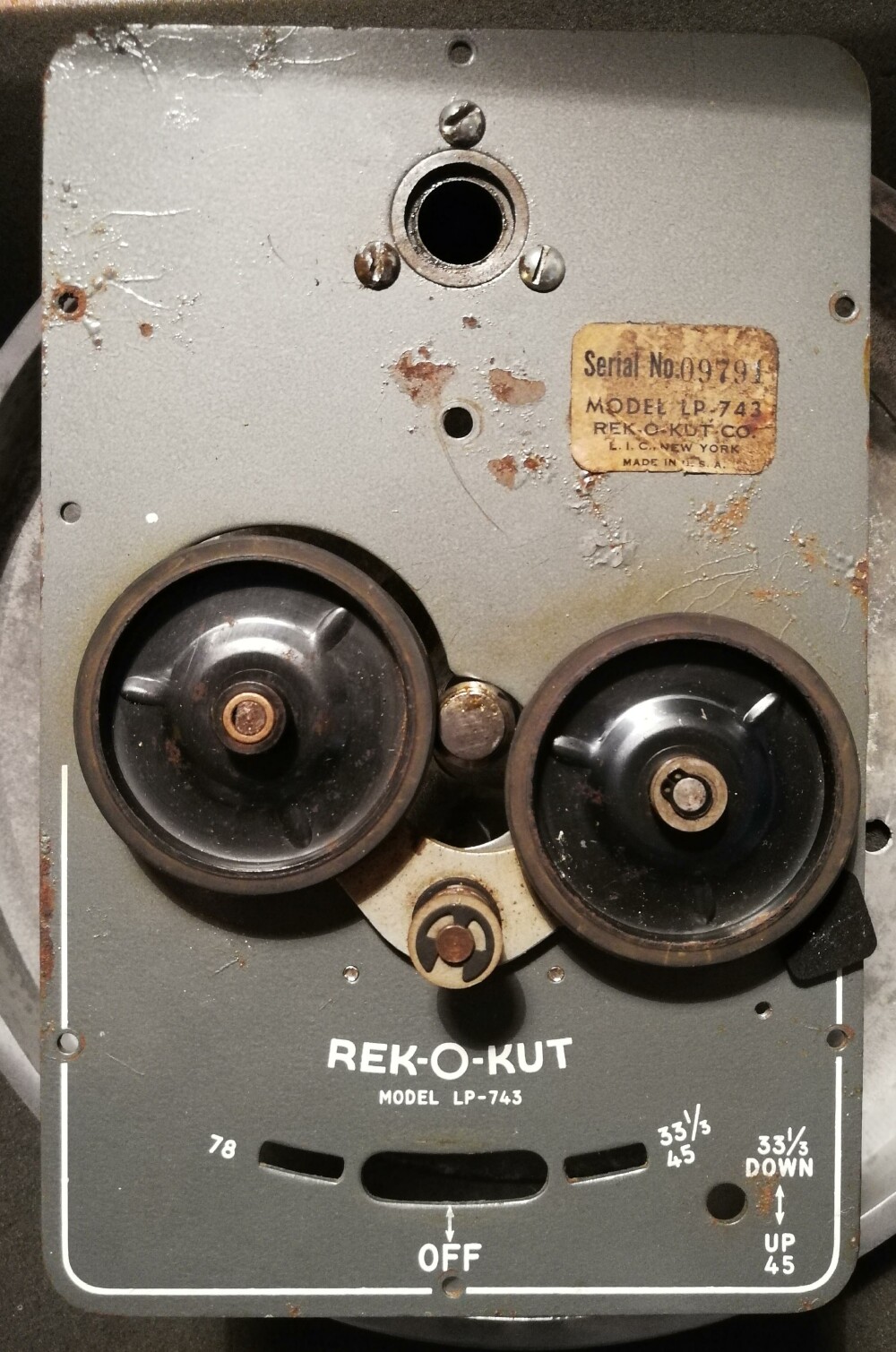

A Rek-O-Kut LP-743, for example, could provide a good bearing and pin, whilst its motor is not up to my needs |
 |
|
This Rek-O-Kuts is a bit amateurish....not the best base for my project |
|
Sparta/Russco parts |
 |
|

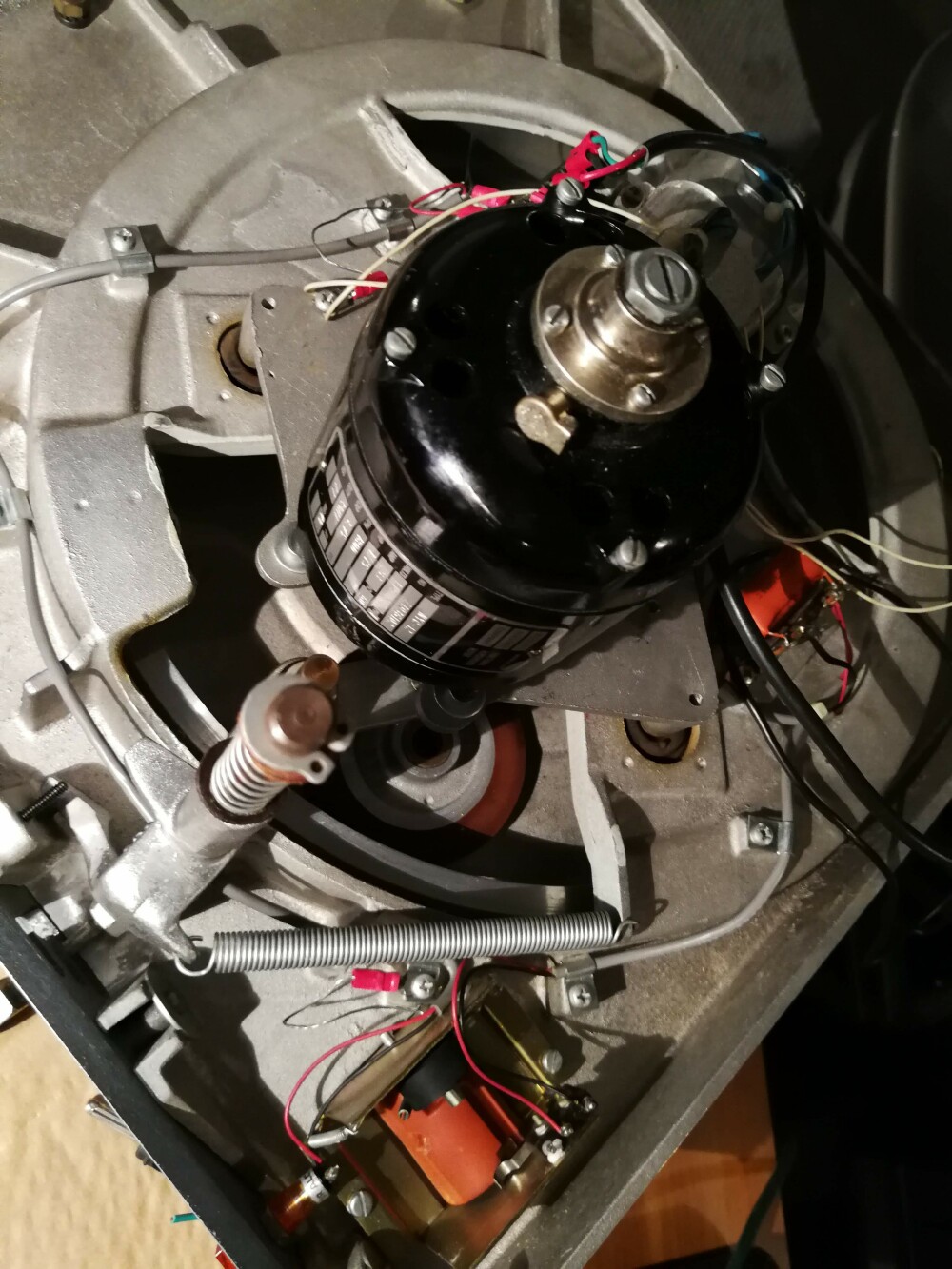

Let's take a look now at the massive mechanicals of a Sparta broadcast deck |
 |
 |
|

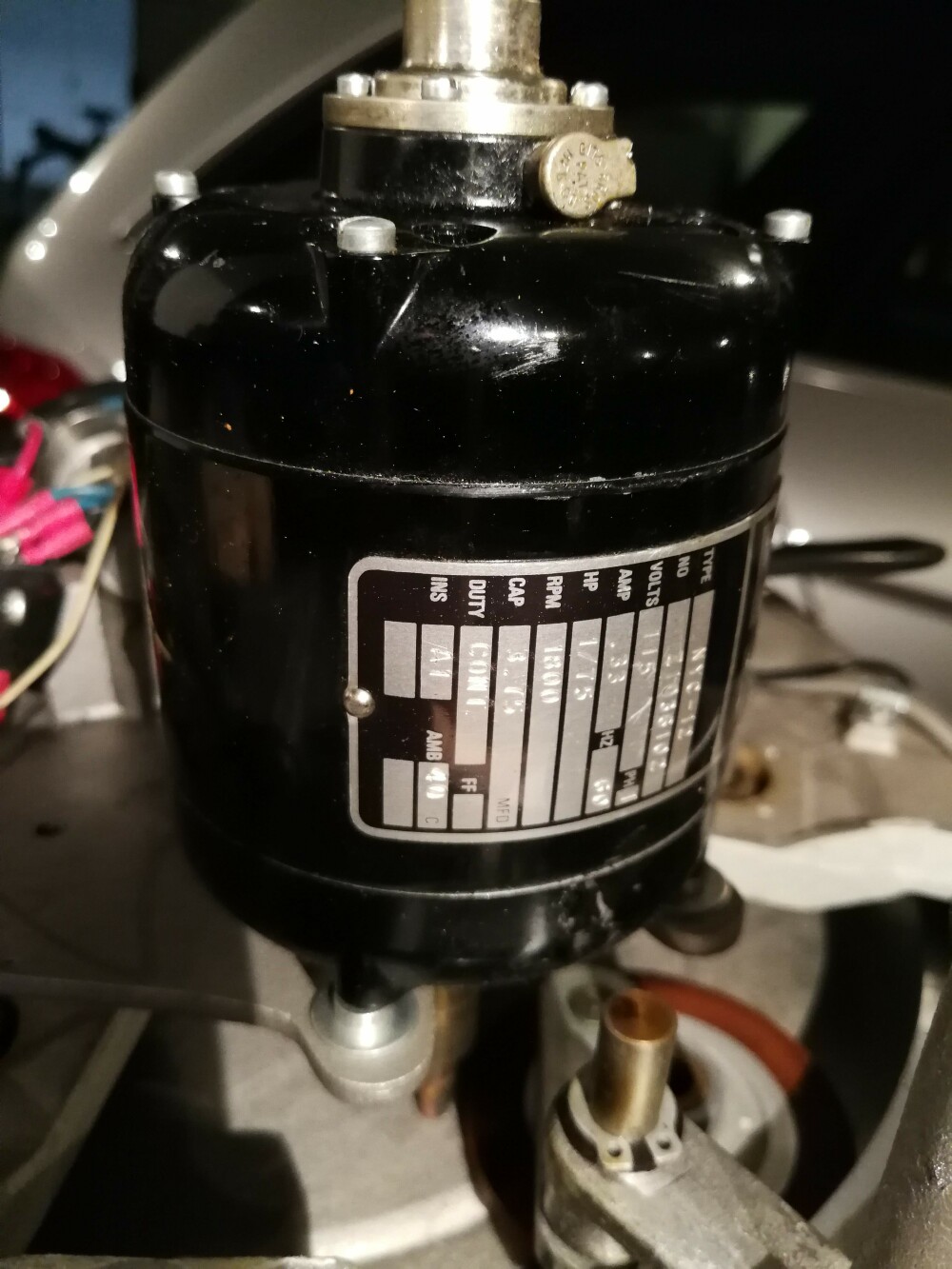

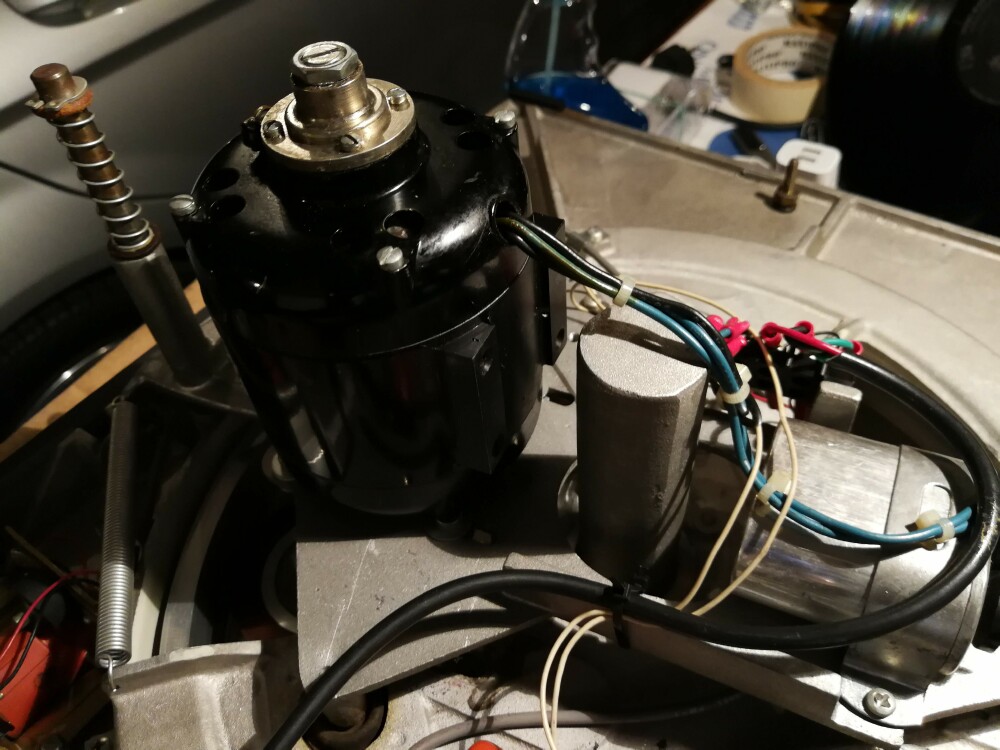

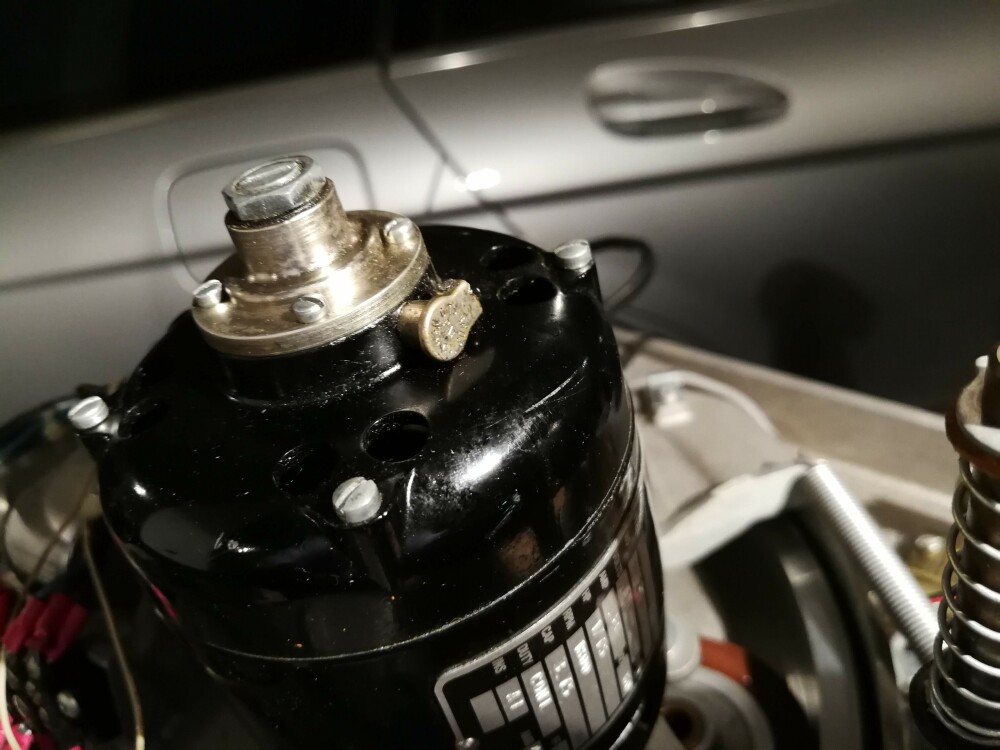

The Bodine motor is huge; not EMT 927-level of size and weight but very impressive anyhow |
 |
|
The lubricating cap and the adjustment screw at the base of the bearing mean business |
 |
|

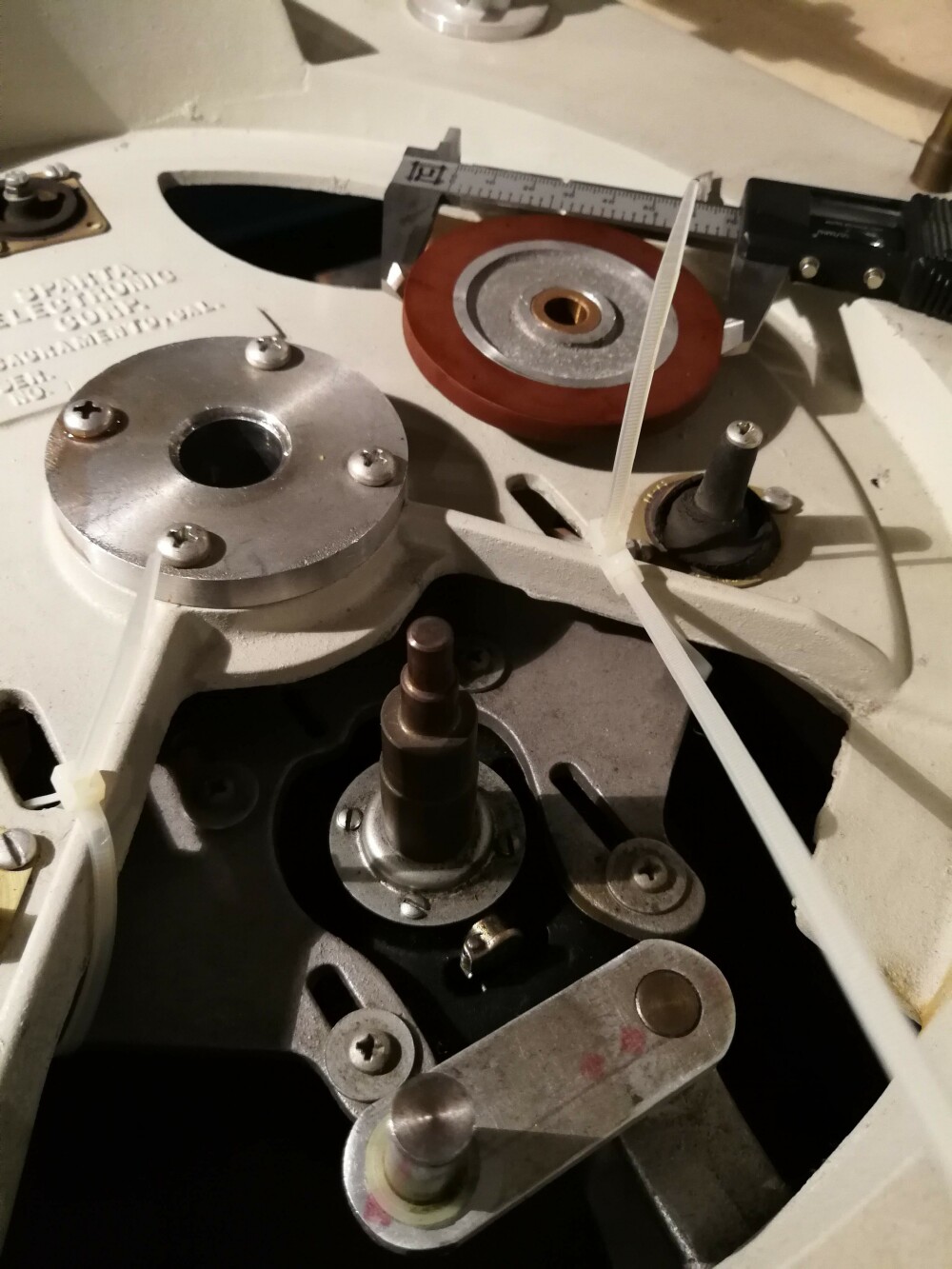

Not many parts, but very sturdy |
 |
|

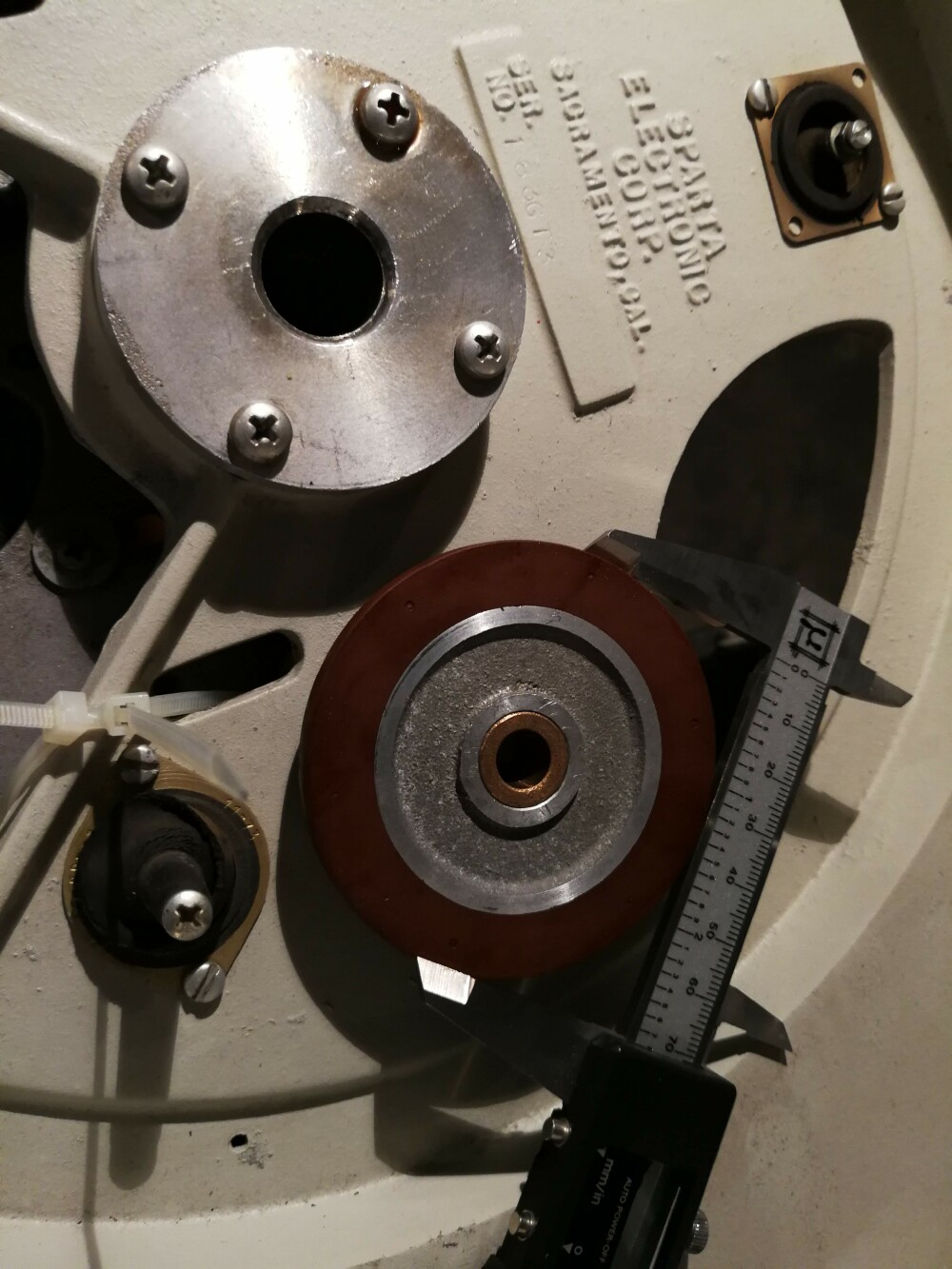

The idler wheel |
 |
|
Bearing |
 |
|

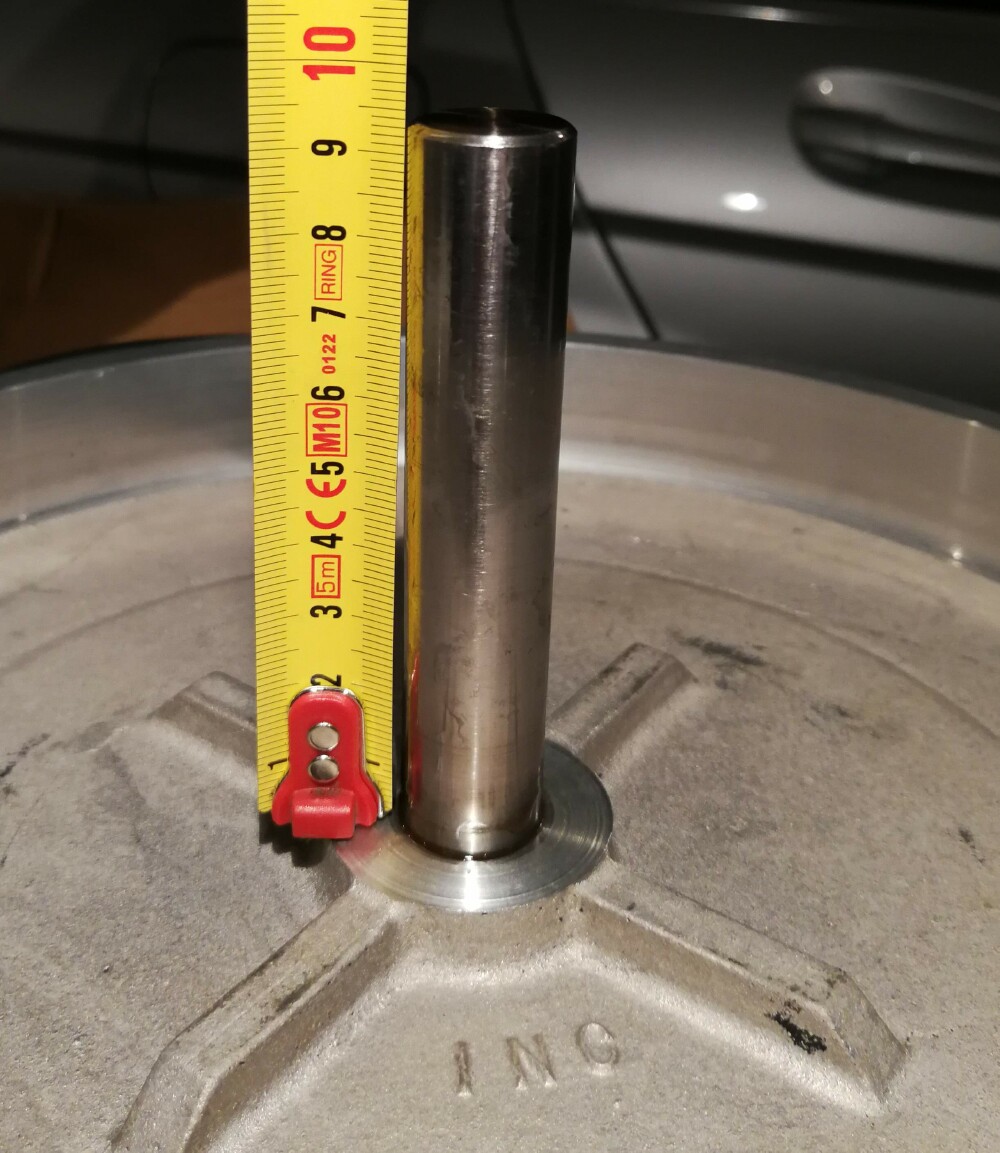

A huge bearing, 93,5 mm tall... |
 |
|

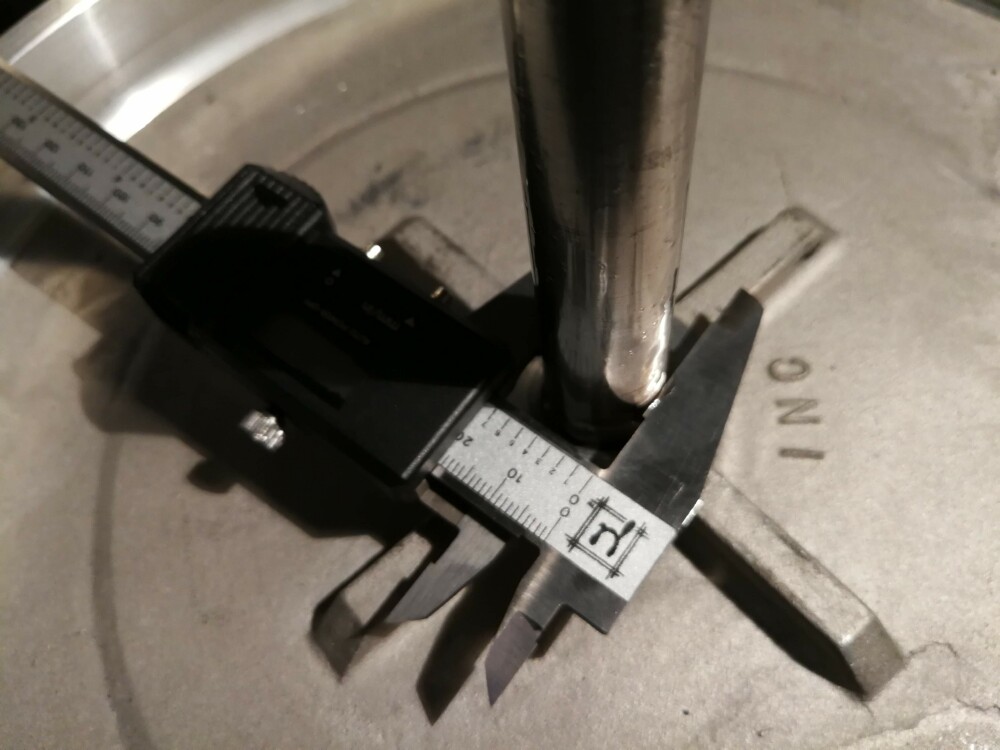

...and nearly 20 mm thick, as big as an EMT 927s |
 |
|
A simple but effective architecture, very Fifties USA broadcast |
 |
|

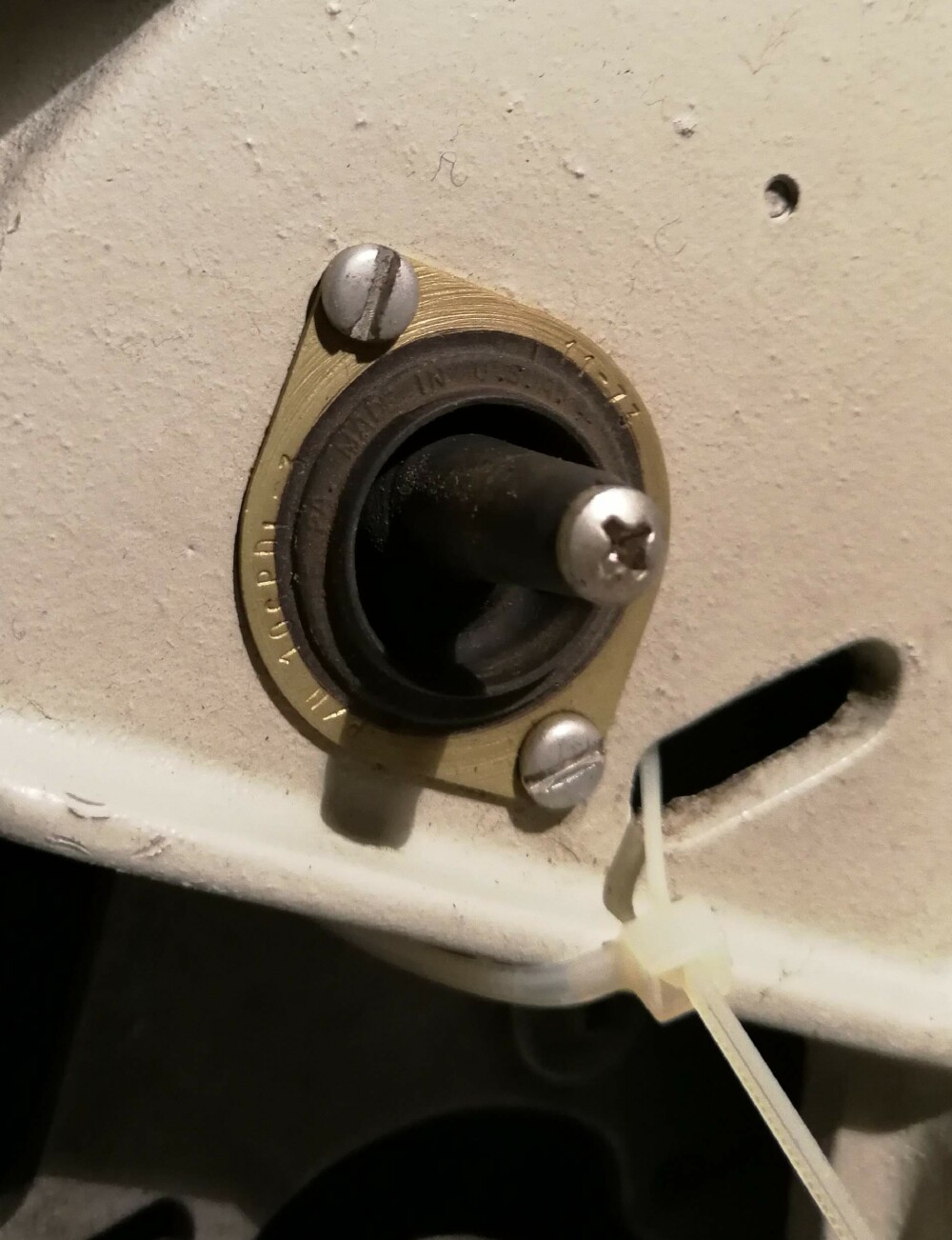

Those insulating rubbers break with age....luckily spares are still available from the good guys at russcoturntables.com |
|
EMT Parts |
 |
|

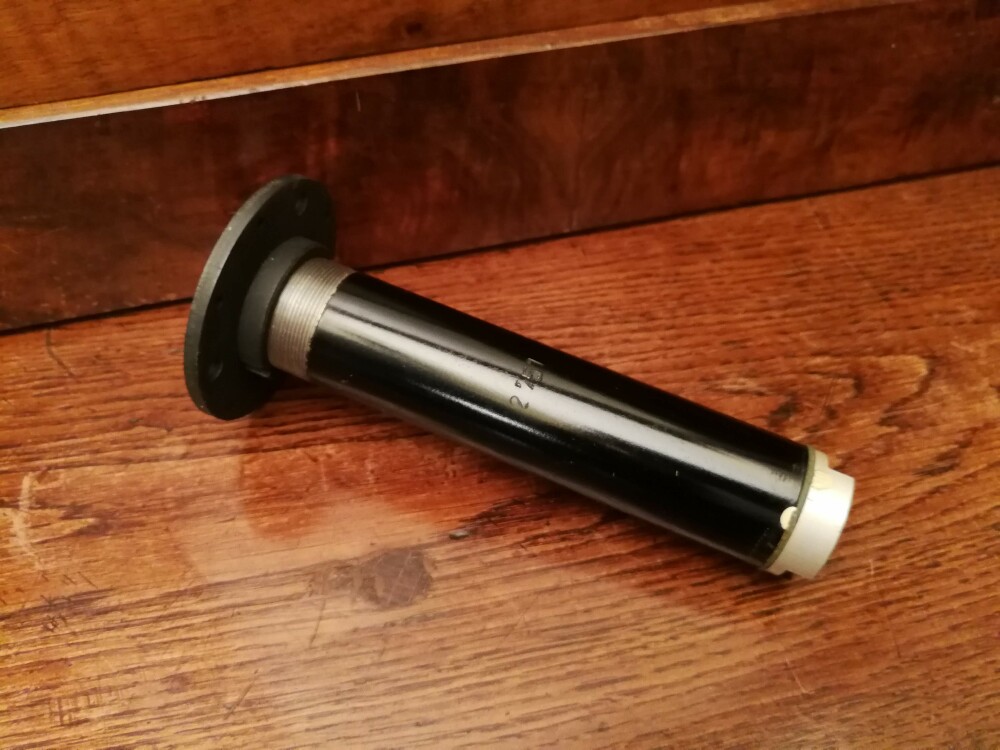

One of the advantages of being since so many years interested in high-level turntables is that many spares are just around the house. Browsing through boxes and drawers I found a vintage EMT 930 bearing sleeve in excellent condition |
 |
|

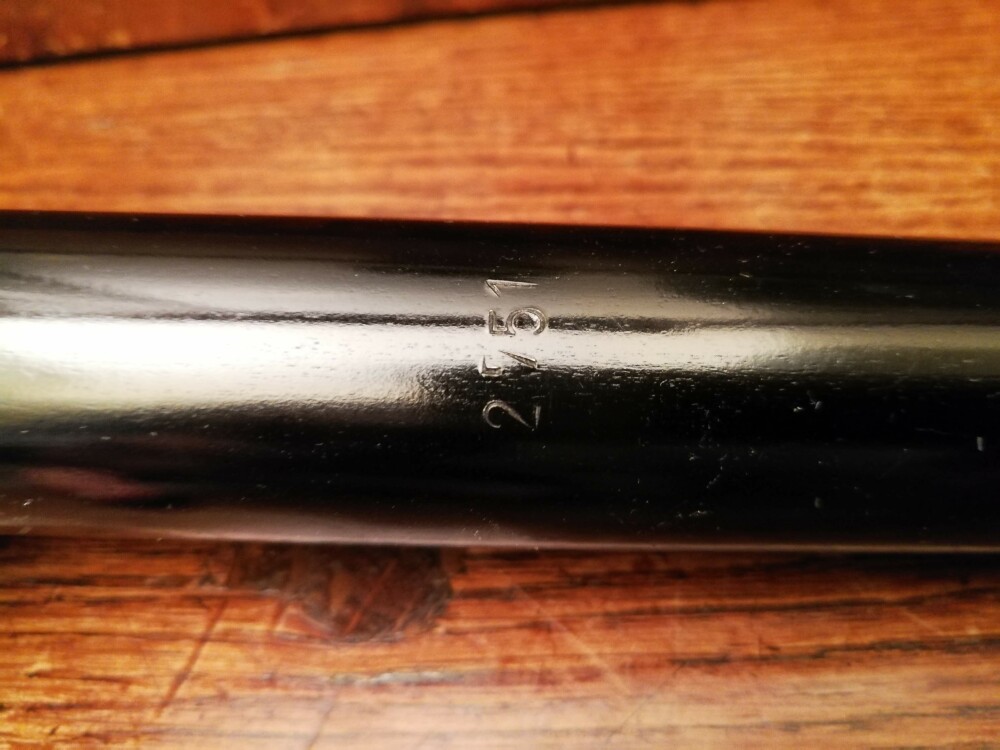

The '2751' engraved on it means that it belonged to one of the early, pre-'61 machines |
 |
|

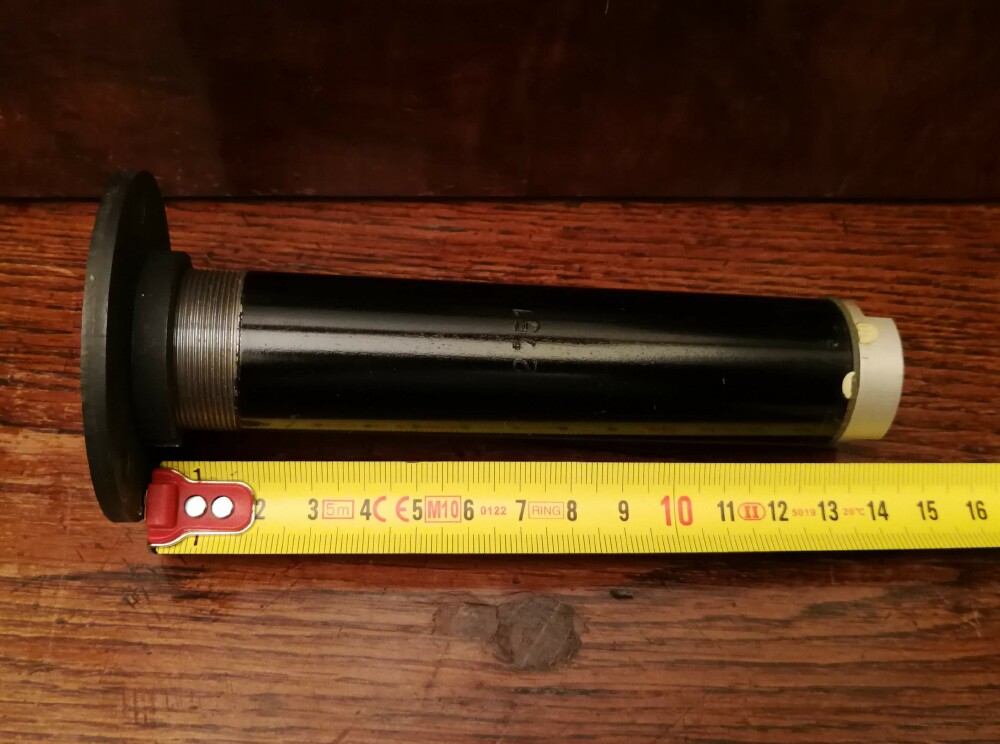

It is big, longer than a Sparta's: it's 145 mm tall (outside) and carries a 15 mm shaft |
 |
|

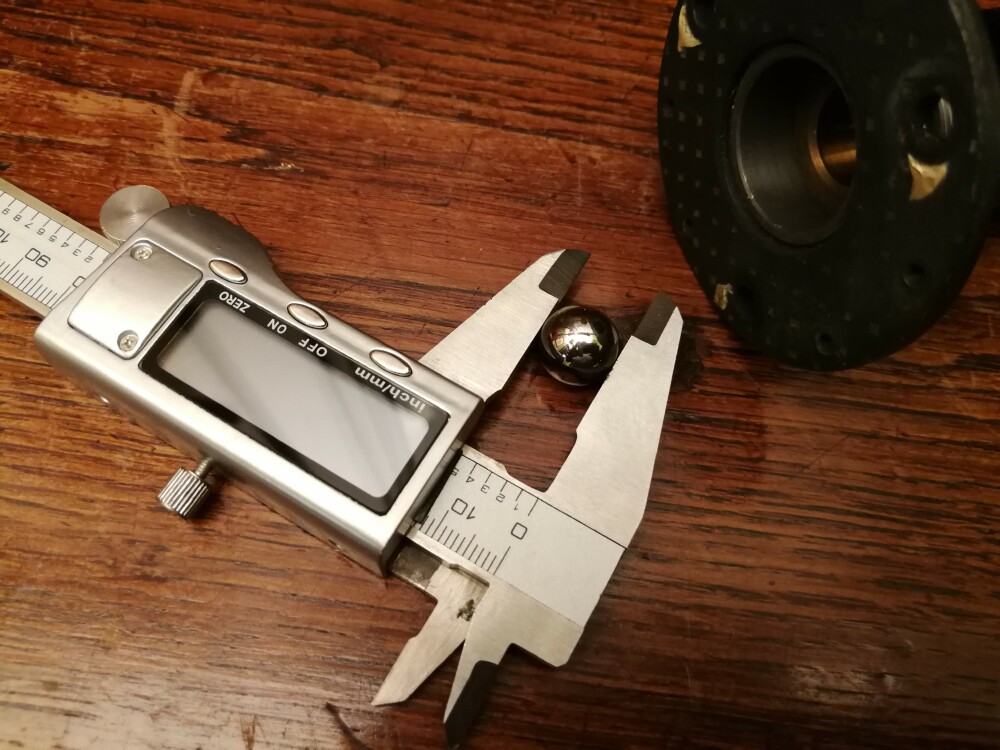

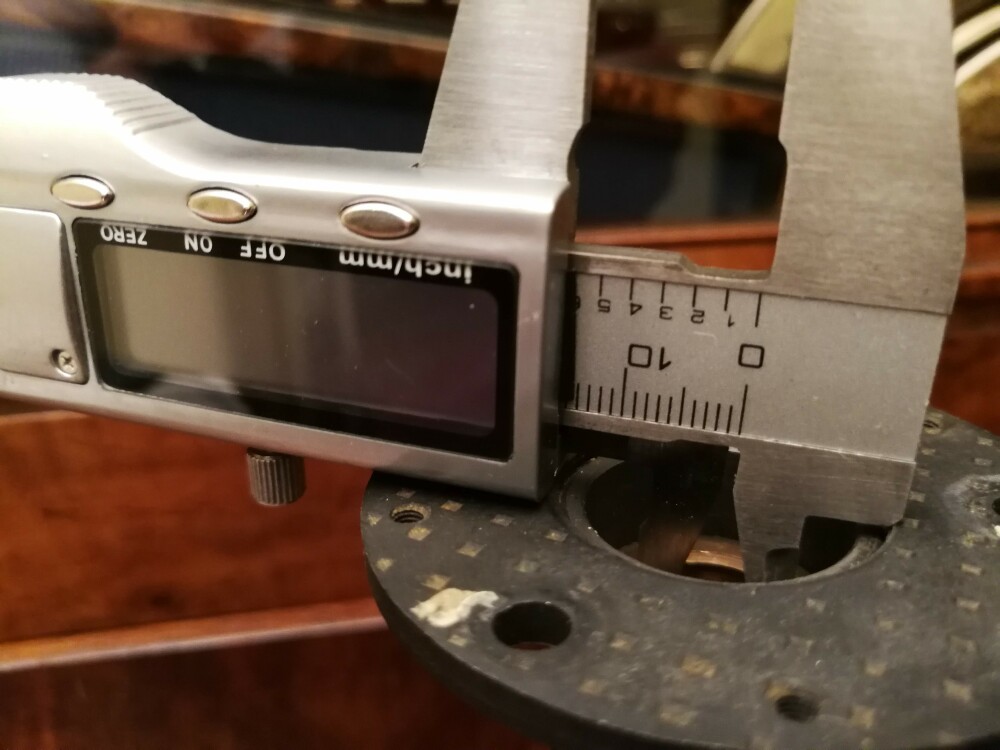

The all-important load-carrying steel sphere has a diameter of 13 mm |
 |
|
Papst motor |
 |
 |
|
Sometimes you also lose some parts. For example I have no idea where I put this Papst motor, a spare for the Carrson turntable, that I would have used in my turntable project |
 |
